PTC-150W

16 programmable position presets including pan, tilt and zoom positions, allow the camera to quickly move between predetermined camera positions using the remote, or an available PTZ controller. For multi-camera shoots, the built-in tally light can identify when it is the active camera. The camera features a built-in IR cut filter for low light shooting. PTC-150W supports real time position reporting by per frame, providing useful information for virtual studio applications.

The camera supports Sony VISCA protocol for PTZ control using RS-422 protocols over the unit’s RJ-45 port.

• HD Resolution: 1/2.8″ High Definition 2.14 MegaPixels progressive CMOS sensor
• 30x optical zoom (f=4.3 mm to 94.6 mm)
• High definition formats supported: 1080/ 59.94p, 1080/ 50p, 1080/ 59.94i, 1080/ 29.97p, 1080/ 25p, 1080/ 50i, 720/ 59.94p, 720/50p
• Standard definition formats supported: 480/ 59.94p, 480/ 59.94i, 576 / 50i
• Dehazing technology allows the foggy or hazy images to be clear and sharp
• Applied with Digital Noise Reduction Function (DNR) to reduce the noise and enable clearer image under low light conditions.
• Position coordinate report by real time per frame

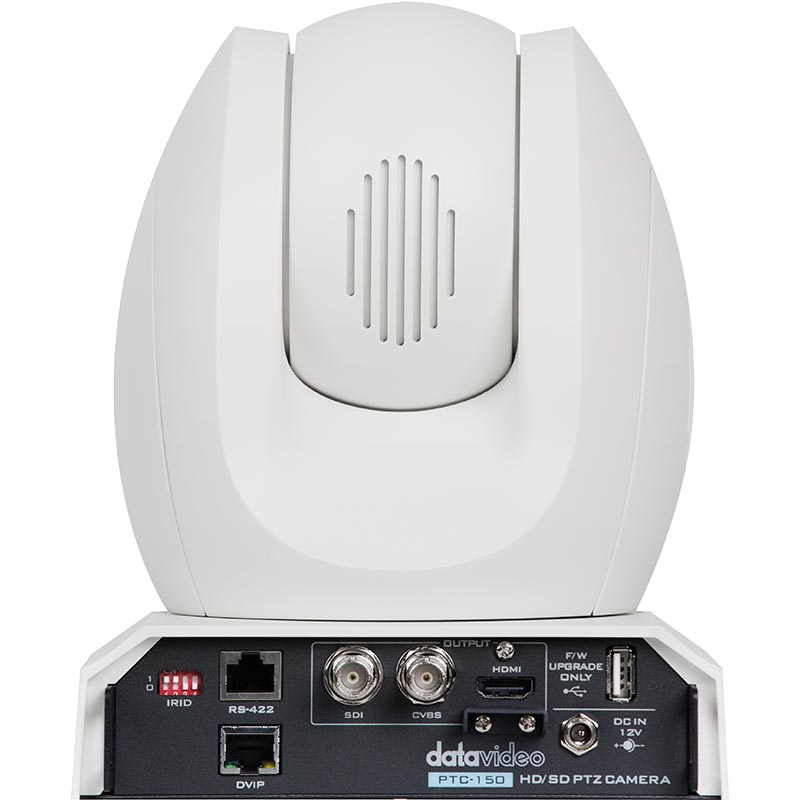

• Video Output: HD-SDI CVBS HDMI synchronously

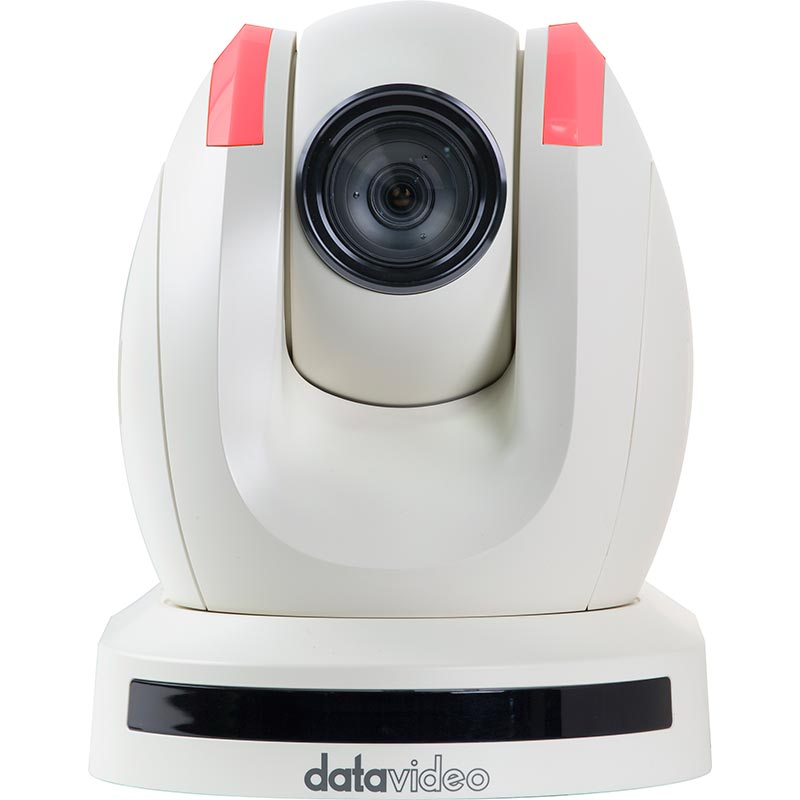

• Tally LED Design (IR / RF Controller/ RS-422/ DVIP Operation)
• Supports SONY VISCA Protocol Keyboard
• Supports DVIP Control Protocol (F/W update to activate)
